Download the PHP package markup-carve/laravel-carve without Composer

Laravel Carve

Carve markup language integration for Laravel: Blade directives, services, validation, and caching.

View the live demo →

Authoring in Laravel

Render structured values with Carve::render(), store source with the AsCarve Eloquent cast, and use <x-carve> or static .crv views in Blade. Validation supports content presets, lint findings and character limits. Artisan commands render, convert and lint documents.

See Authoring in Laravel for these APIs, imports, string helpers, converter customization and cache configuration.

Installation

The service provider and Carve facade alias are auto-discovered via Laravel's package discovery.

Optionally publish the config:

Usage

Blade Directives

Facade

Dependency Injection

Configuration

symbols maps :name: shortcodes to trusted raw HTML. Symbol values are inserted without escaping, so never populate this option from user input. Set source_lines to true to add 1-based data-source-line attributes to rendered blocks for editor preview scroll-sync. Both options are configured per converter profile.

File includes

Blade directives and string methods never read files. To enable includes for trusted file-backed content, configure an absolute containment root and call the explicit file API:

Carve::toHtmlFile() returns only the HTML. Nested paths resolve relative to the file containing each directive. Traversal and symlink escapes are refused. Warnings sent to Laravel's logger omit resolver details and replace outside paths.

include_root has to be an absolute path. A relative one is refused rather than resolved against the working directory, which is arbitrary with respect to the document, so a misconfigured root raises at boot instead of widening silently.

When package caching is enabled, a cached file render is served only while every recorded dependency still hashes the same, so editing an included file cannot serve the parent page's stale HTML. Missing targets are recorded too: creating one is what makes its directive start working.

Multiple Converter Profiles

Use different configurations for different contexts:

Safe Mode

Safe mode is enabled by default for XSS protection. Disable only for trusted content:

Extensions

Enable carve-php extensions per converter:

Available extensions:

• admonition - Admonition blocks (note, tip, warning, danger, etc.)
• autolink - Auto-convert URLs to clickable links
• citations - Bracketed citations with an in-document bibliography (numbered or author-date)
• code_callouts - Numbered callout markers on fenced-code lines with a bound explanation list
• code_group - Transform code-group divs into tabbed interfaces
• color_swatch - Inline color swatches for CSS color tokens via the color role
• default_attributes - Add default attributes to elements by type
• details - Render ::: details blocks as native <details>/<summary> widgets
• external_links - Configure external link behavior (target, rel)
• fenced_render - Emit fenced blocks of a chosen language as client-rendered hydration elements
• frontmatter - Parse YAML/TOML/JSON frontmatter blocks
• glossary - Glossary definition lists with linked term references
• heading_level_shift - Shift heading levels up/down
• heading_numbers - Auto-number sections and rewrite heading cross-references
• heading_permalinks - Add anchor links to headings
• heading_reference - Link to headings with [text](#heading) syntax
• index - Collect :index[term] markers into a sorted index block
• inline_footnotes - Convert spans with class to inline footnotes
• list_table - Author tables as nested lists (::: list-table) with block content in cells
• math_block - Render math fenced code blocks as display math
• mentions - Convert @username to profile links
• mermaid - Render Mermaid diagram code blocks
• plantuml - Render PlantUML/puml diagram code blocks (needs a client renderer; see below)
• semantic_span - Convert spans to <kbd>, <dfn>, <abbr> elements
• smart_quotes - Convert straight quotes to typographic quotes
• spoiler - Hidden spoiler content revealed on interaction
• tab_normalize - Expand tabs in code content to spaces at render time
• table_of_contents - Generate TOC from headings
• tabs - Tabbed content blocks (CSS or ARIA mode)
• toc_placement - Render the TOC exactly where a ::: toc block appears
• wikilinks - Support [[Page Name]] wiki-style links

See Extensions documentation for detailed configuration options.

Client-side diagram rendering

The diagram extensions emit a <pre class="LANG"> hydration element; the browser turns it into a picture. Mermaid, WaveDrom, Vega-Lite and Chart each render once you load their library. Graphviz and D2 render fully offline with the WebAssembly helpers from @markup-carve/carve-grammars (no server, no external call):

PlantUML is the exception - it has no practical in-browser renderer and needs a Kroki server:

⚠️ Privacy / GDPR: the default Kroki server is the public https://kroki.io, so the PlantUML source is sent to a third party outside your domain. For sensitive content, or to stay offline, point server at a self-hosted or localhost Kroki so no data leaves your control, and disclose the external call to end users where required. For a build-time / SSR pipeline, render diagrams server-side instead so no client JS ships.

Validation Rule

Validate that a field contains valid Carve markup:

Laravel Boost

The package ships Laravel Boost resources: a core guideline and a carve-development skill under resources/boost. Apps using Boost pick them up on php artisan boost:install or boost:update, so AI agents write Carve (not Markdown) and use the safe rendering APIs.

Documentation

Full documentation: markup-carve.github.io/laravel-carve

• Installation
• Configuration
• Blade Usage
• Service Usage
• Validation
• Safe Mode
• Extensions
• Caching
• Carve Syntax

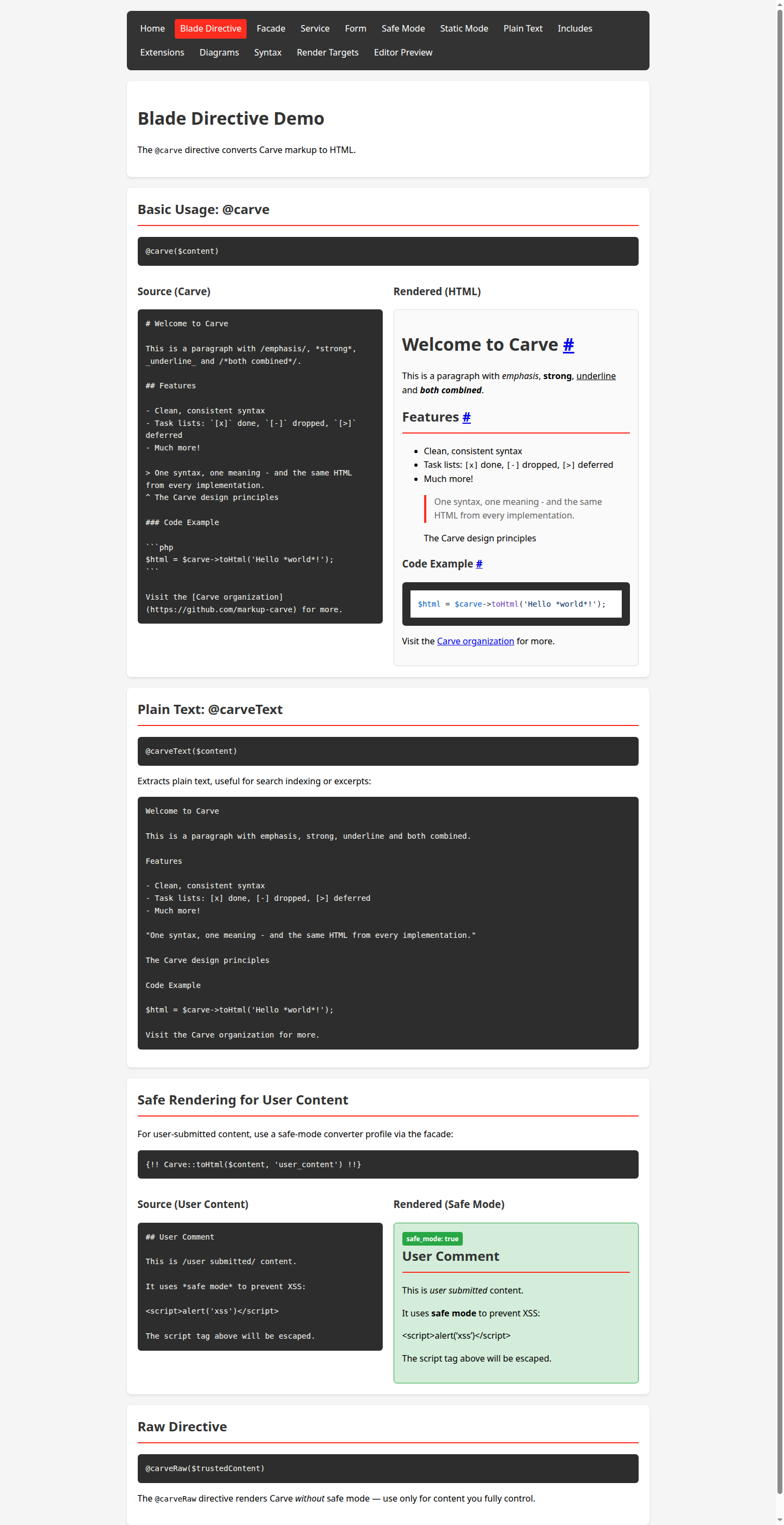

Demo Application

A full runnable demo app lives at laravel-carve-demo: the Blade directives, facade and service usage, form validation, safe-mode comparison, static render mode, plain text extraction and the extension set.

What is Carve?

Carve is a lightweight markup language for structured documents, with clear, consistent syntax. It supports rich document features such as footnotes, definition lists, task lists, and math.

Learn more about Carve syntax at github.com/markup-carve/carve.

Ecosystem

This package is part of the Carve organization - the spec with its conformance corpus, three byte-identical reference implementations (JS, PHP, Rust), editor plugins, and framework integrations. See awesome-carve for a curated list of everything Carve.
